Weighing transducer 稱重變送器

TTM-TX101

Characteristtic特性

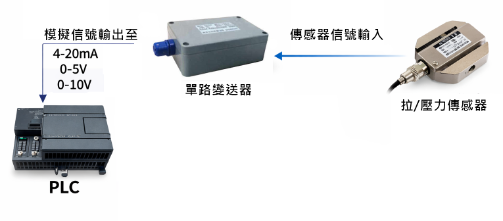

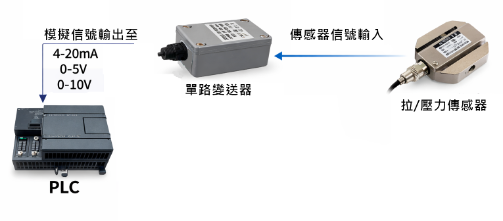

The external digital weighing transmitter converts the micro voltage signal (MV) of the weighing sensor into 485 digital signal with standard communication protocol by ad amplipcation.

The transmitter has the characteristics of low power consumption, high resolution, high precision and Iow temperature drift.

外部數位稱重變送器透過放大作用，將稱重感測器的微伏特訊號 (MV) 轉換為符合標準通訊協定的 485 數位訊號。

此變送器具有低功耗、高解析度、高精度和低溫度漂移等特性。

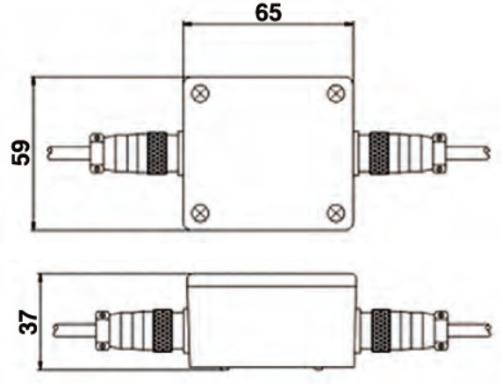

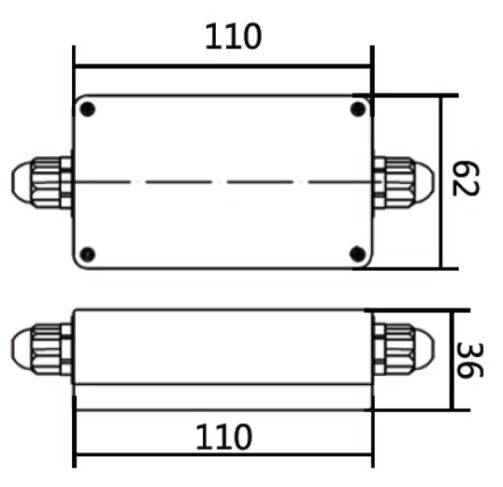

External Dimension外形尺寸

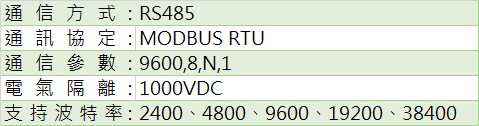

Communication parameters通訊參數

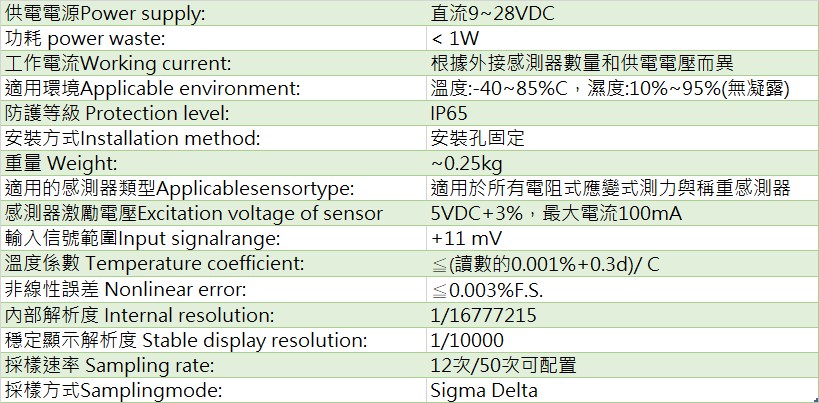

Parameters Table參數表

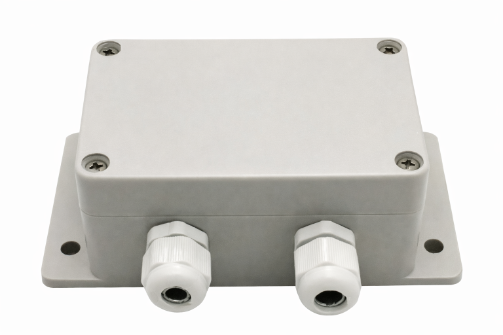

TTM-BSQ001

Characteristtic特性

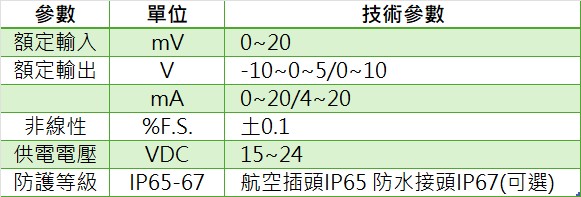

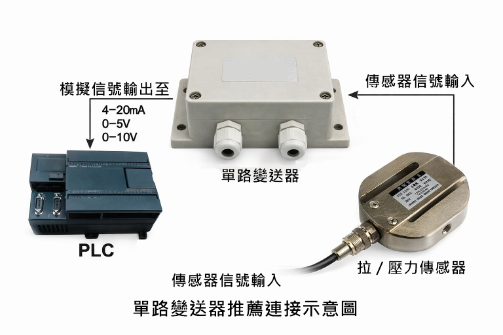

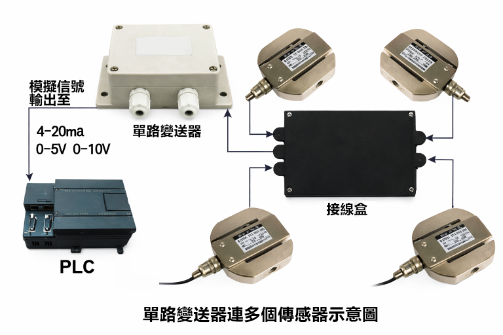

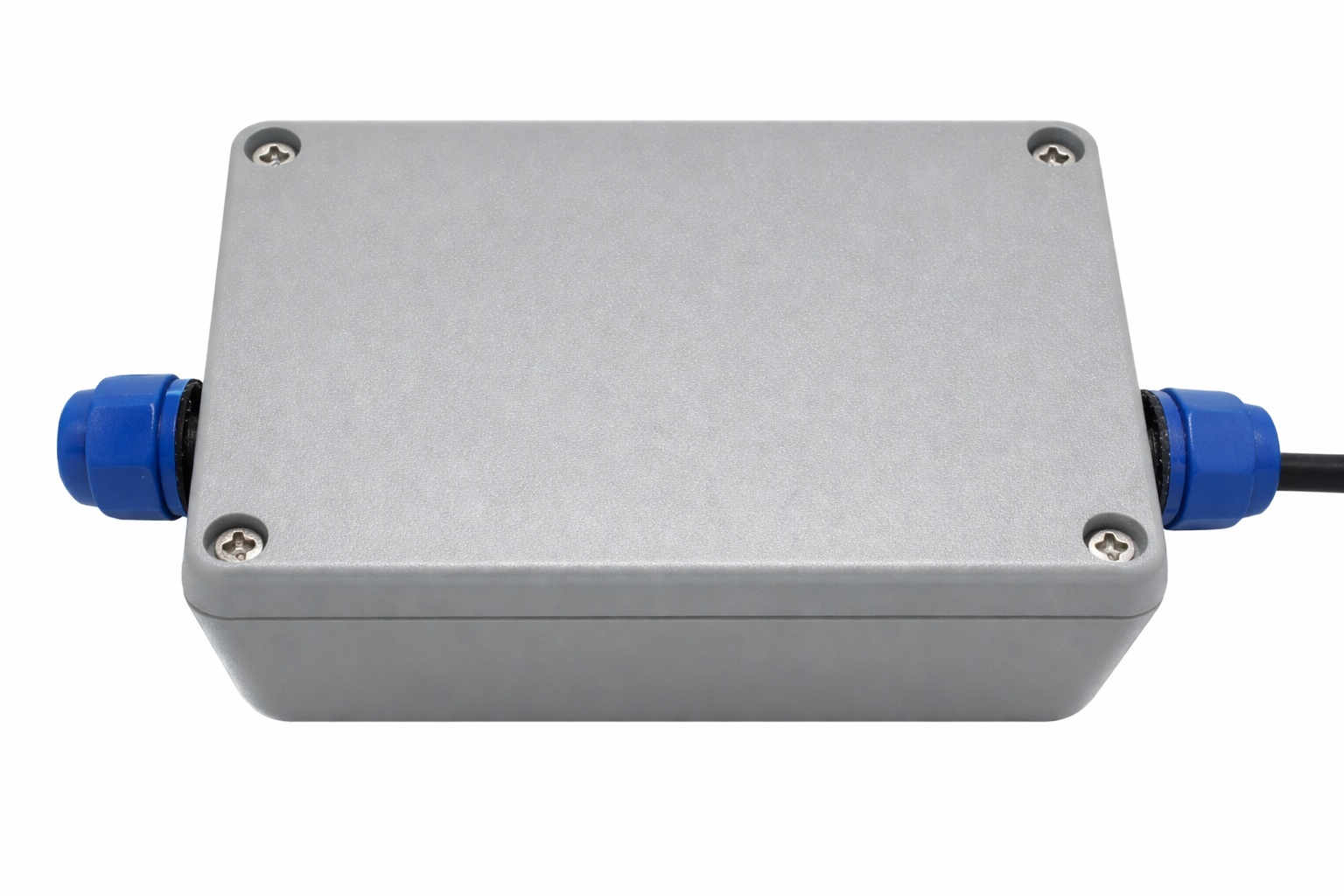

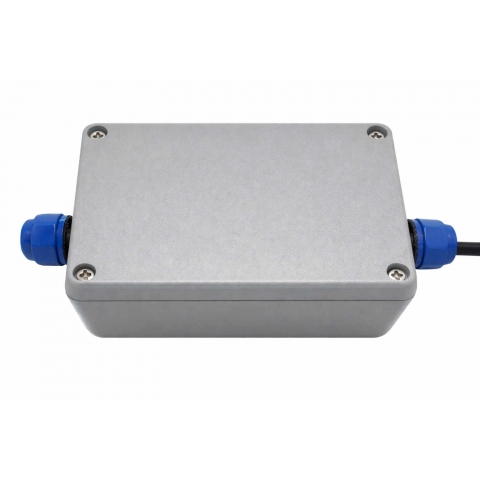

The external transmitter adopts aluminum alloy shell, which can precisely amplify the micro voltage signal (MV) of the weighing sensor. The circuit is neat, constant current bridge supply, voltage and current conversion, impedance adaptation, linear compensation, temperature compensation, etc. the mechanical quantity is converted into standard current and voltage signal output. 4 ~ 20mA, 0 ~ 10mA, - 5V - 0 - 5V, 1 - 5V, -10 - 0-10V are directly connected with automatic control equipment The transmitter has the function of zero adjustment and gain adjustment.

外部變送器採用鋁合金外殼，可精確放大稱重感測器的微伏特訊號（MV）。電路設計簡潔，採用恆定電流橋供電，進行電壓電流轉換、阻抗匹配、線性補償、溫度補償等，將機械量轉換為標準的電流和電壓訊號輸出。 4~20mA、0~10mA、-5V~0~5V、1~5V、-10V~0~10V 等輸出可直接與自動控制設備連接。變送器具有零點調整和增益調整功能。
